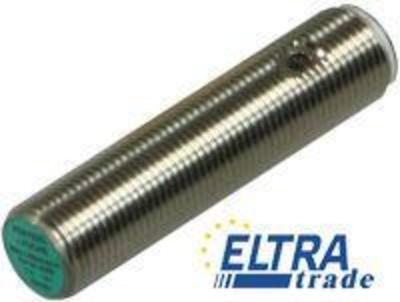

The inductive sensor is a cylindrical type sensor designed for reliable non-contact detection of metallic objects. With a housing diameter of 12 mm and a rated operating distance of 2 mm, this sensor is suitable for various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, providing precise detection of metallic objects without physical contact. These sensors operate on the principle of electromagnetic induction, where an oscillating electromagnetic field is generated by the sensor. When a metal object approaches the sensor’s sensing range, it disrupts this field, triggering a response that can be utilized for various applications.
Commonly used in manufacturing, packaging, and material handling industries, inductive sensors offer robust performance in environments where traditional mechanical switches may fail due to wear or contamination. Their compact cylindrical design allows for easy integration into machinery and equipment, while their durable brass, nickel-plated housing ensures resistance to harsh conditions.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 2 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 1.62 mm | |
| Reduction factor rAl | 0.15 | |
| Reduction factor rCu | 0.1 | |
| Reduction factor r304 | 0.6 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 1000 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 3220 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
