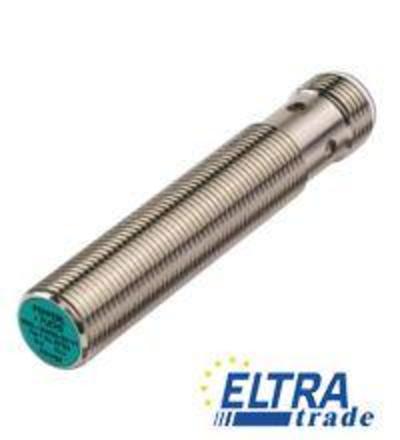

The inductive sensor is a cylindrical type sensor characterized by its compact 12 mm housing diameter and robust brass construction with nickel plating. It operates on a rated distance of 2 mm and features a 4-pin M12 x 1 connector for reliable DC voltage supply.
Inductive proximity sensors are integral components in various industrial automation applications, designed to detect metallic objects without direct contact. These sensors utilize electromagnetic fields to sense the presence of ferrous and non-ferrous metals, making them ideal for applications in assembly lines, packaging machines, and material handling systems.
The cylindrical design of these sensors allows for flush installation, providing versatility in mounting options while maintaining a compact footprint. With a rated operating distance of 2 mm, they offer precise detection capabilities in environments where space is limited. The durable brass housing, complemented by a nickel-plated finish, ensures resistance to wear and corrosion, enhancing longevity in harsh operational conditions.
Common applications for inductive sensors include position sensing, speed monitoring, and object counting, making them essential in enhancing efficiency and reliability in automated processes. Their robust design and reliable performance contribute to safety and productivity in manufacturing environments.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 2 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 1.62 mm ( -25 … 70 °C (-13 … 158 °F) ) 0 … 1.52 mm ( -40 … -25 °C (-40 … -13 °F) ) |
|
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.2 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 1500 Hz | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 °C | |
| No-load supply current | less than or equal to 17 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1060 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
