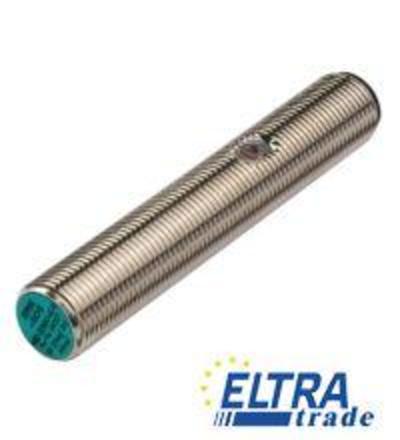

This inductive sensor is designed for precise detecting of metallic objects without physical contact. Its robust construction ensures reliability in various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, providing reliable non-contact detection of metallic objects. These sensors operate based on the principle of electromagnetic induction, detecting changes in the oscillating electromagnetic field caused by the presence of metallic targets. This allows for accurate and repeatable sensing in a range of environments, including manufacturing and material handling.
Common applications for inductive proximity sensors include position sensing, object counting, and detection for safety mechanisms in machinery. Their cylindrical design and stainless steel or brass housing provide durability, making them suitable for harsh conditions. With a rated operating distance of up to 2 mm, these sensors can be installed flush into machinery, ensuring minimal interference with equipment operation while maintaining high sensitivity.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 2 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 1.62 mm | |
| Reduction factor rAl | 0.25 | |
| Reduction factor rCu | 0.15 | |
| Reduction factor r304 | 0.66 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 1000 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 °C | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 3220 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
