The inductive sensor is designed for reliable object detection in a variety of industrial applications. With its robust construction and precise performance, it is ideal for use in automation systems.
Inductive proximity sensors are essential components in modern automation technology, widely utilized for non-contact detection of metallic objects. These sensors operate based on the principle of electromagnetic induction, allowing them to detect the presence of metal targets without physical contact. They are particularly valued for their durability and reliability in harsh environments where mechanical switches may fail.

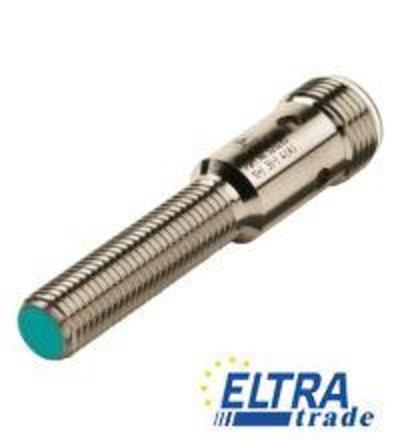

The cylindrical inductive sensors from this product family are characterized by their compact design, with a housing diameter of 8 mm. They are typically constructed from nickel-plated brass, providing enhanced resistance to wear and corrosion. The rated operating distance of 2 mm ensures precise detection, making these sensors suitable for applications in various sectors, such as manufacturing, packaging, and assembly lines.
These sensors feature a 4-pin M12 connector for easy integration into existing systems and are designed for flush installation, which allows for seamless integration into machinery and equipment. The 3-wire output configuration is compatible with DC voltage systems, enabling straightforward connectivity and reliable performance in diverse industrial settings.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 2 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 1.62 mm | |
| Reduction factor rAl | 0.45 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 3000 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 100 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 °C | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 2790 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | LCP | |
| Housing diameter | 8 mm | |
| Degree of protection | IP67 | |
