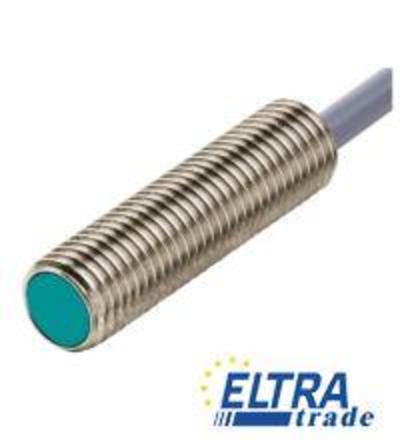

The inductive sensor is a cylindrical type proximity switch designed for non-contact detection of metallic objects. With a compact 8 mm housing and rated operating distance of 2 mm, it offers reliable performance in various industrial applications.
Inductive proximity sensors are widely used in automation and control applications due to their ability to detect metallic objects without physical contact. These sensors operate on the principle of electromagnetic induction, where an oscillating electromagnetic field is generated around the sensor. When a metallic object enters this field, it alters the field’s characteristics, allowing the sensor to detect the presence of the object.
Common applications for inductive sensors include position sensing, object counting, and safety monitoring in manufacturing environments. These sensors are particularly advantageous in harsh industrial settings, as they are resistant to dust and moisture. The flush installation capability further enhances their versatility, allowing for integration into various machinery and equipment without protruding components. The 3-wire output configuration ensures compatibility with a wide range of control systems, making them an ideal choice for modern automation solutions.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 2 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 1.62 mm | |
| Reduction factor rAl | 0.45 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 3000 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 100 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 2790 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.14 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | LCP | |
| Housing diameter | 8 mm | |
| Degree of protection | IP67 | |
