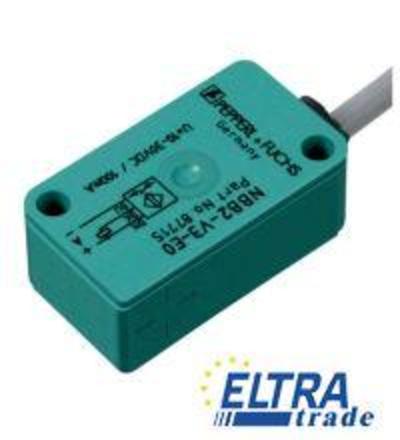

The inductive sensor from Pepperl+Fuchs is designed for non-contact detection of metallic objects. With a rated operating distance of 2 mm, this sensor is suitable for various industrial applications.
The inductive sensor family is engineered for precise detection of metallic targets, making them ideal for automation and control applications in harsh industrial environments. These sensors operate on the principle of electromagnetic induction, allowing them to detect the presence of metal without direct contact. This feature enhances their durability and reliability, especially in applications where physical wear and tear could be a concern.
Common applications include use in conveyor systems, packaging machinery, and robotic automation, where accurate positioning and object detection are critical. The rectangular housing made of PBT ensures robustness and resistance to chemicals, while the ATEX 3G certification indicates compliance with safety standards for use in potentially explosive atmospheres. The flush installation capability further enhances their versatility in various mounting scenarios.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 2 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 1.62 mm | |
| Reduction factor rAl | 0.35 | |
| Reduction factor rCu | 0.2 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 1000 Hz | |
| Reverse polarity protection | yes | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 100 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 130 mm | |
| Core cross-section | 0.14 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 3G- 3D | |
