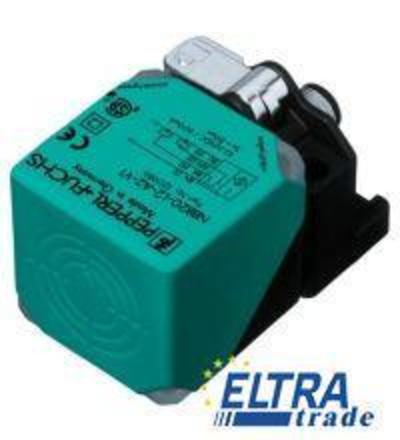

The Inductive sensor from Pepperl+Fuchs is designed for reliable detection of metallic objects without direct contact. With a rated operating distance of 20 mm, it is suitable for a variety of automation applications.
The Inductive Proximity Sensors from Pepperl+Fuchs are designed for non-contact detection of metallic objects, making them essential components in various industrial automation systems. These sensors operate based on the principle of electromagnetic induction, allowing for precise and reliable sensing in environments where physical contact is undesirable.
Common applications for these sensors include position sensing in conveyor systems, detecting the presence of metal parts in assembly lines, and monitoring the position of tools in machining processes. Their robust design and flush installation capability ensure they can be integrated seamlessly into existing machinery, enhancing overall operational efficiency.
- Housing Material: PA
- Connection Type: Connector M12 x 1, 4-pin
- Output Type: 2-wire
- Type of Voltage: DC
| General specifications | ||
| Switching element function | NO/NC programmable | |
| Rated operating distance | 20 mm | |
| Installation | flush | |
| Output polarity | AS-Interface | |
| Assured operating distance | 0 … 16.2 mm | |
| Reduction factor rAl | 0.33 | |
| Reduction factor rCu | 0.31 | |
| Reduction factor r304 | 0.74 | |
| Reduction factor rBrass | 0.41 | |
| Slave type | Standard slave | |
| AS-Interface specification | V2.1 | |
| Required master specification | greater or equal V2.1 | |
| Nominal ratings | ||
| Operating voltage | 26.5 … 31.9 V via AS-i bus system | |
| Switching frequency | 0 … 150 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| No-load supply current | less than or equal to 40 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | dual-LED, yellow | |
| Error indicator | dual-LED, red | |
| Functional safety related parameters | ||
| MTTFd | 1330 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PA | |
| Sensing face | PA | |
| Degree of protection | IP69K | |
| Mass | 130 g | |
