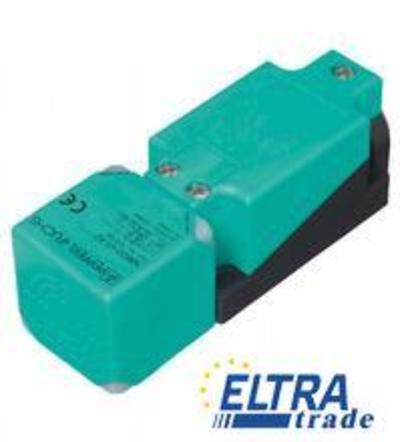

The inductive sensor is designed for reliable detection of metallic objects without direct contact. With a rated operating distance of 20 mm, it offers robust performance in various industrial environments.
Inductive proximity sensors are widely utilized in automation and control applications due to their non-contact detection capabilities. These sensors operate by generating an electromagnetic field, which is interrupted by the presence of metallic objects, allowing for accurate sensing without physical contact. The VariKont L series from Pepperl+Fuchs is specifically engineered for flush mounting, making it suitable for installation in confined spaces where traditional sensors may be impractical.
The sensors are constructed from durable PA housing material, ensuring resistance to environmental factors such as dust and moisture. They feature a 4-pin M12 x 1 connector for easy integration into existing systems. The 2-wire output type allows for straightforward wiring configurations, making these sensors an ideal choice for diverse applications, including conveyor systems, machine automation, and safety guard monitoring.
| General specifications | ||
| Switching element function | NO contact | |
| Rated operating distance | 20 mm | |
| Installation | flush | |
| Assured operating distance | 0 … 16.2 mm | |
| Reduction factor rAl | 0.33 | |
| Reduction factor rCu | 0.31 | |
| Reduction factor r304 | 0.74 | |
| Reduction factor rBrass | 0.41 | |
| Nominal ratings | ||
| Operating voltage | 3.8 … 30 V DC | |
| Switching frequency | 0 … 30 Hz | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3.8 V | |
| Operating current | 2 … 100 mA | |
| Off-state current | 0 … 0.5 mA | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Storage temperature | -25 … 85 �C (-13 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PA | |
| Sensing face | PA | |
| Degree of protection | IP69K | |
| Mass | 130 g | |
