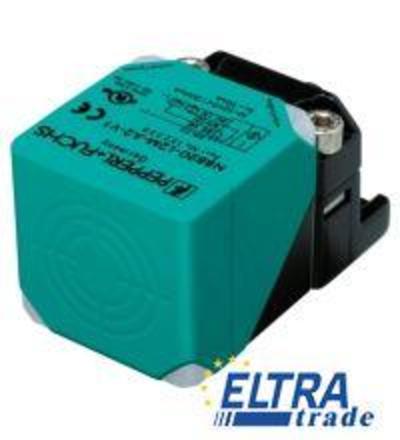

The inductive sensor from Pepperl+Fuchs is designed for reliable detection of metallic objects without physical contact. It operates on a rated distance of 20 mm, making it suitable for various industrial applications.
Pepperl+Fuchs inductive proximity sensors are essential components in automation technology, providing non-contact detection of metallic targets. These sensors utilize electromagnetic fields to sense the presence of conductive materials, making them ideal for applications in manufacturing and process automation environments. Their robust design and reliable performance ensure consistent operation in harsh conditions.
Common applications for inductive sensors include position detection, object counting, and safety monitoring in machinery. Their versatility allows for installation in various orientations, and they can be easily integrated into existing systems. The flush mount design and durable construction, featuring a metal base and Xylan coated mounting flange, enhance their suitability for high-demand industrial settings.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 20 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 16.2 mm | |
| Reduction factor rAl | 0.33 | |
| Reduction factor rCu | 0.31 | |
| Reduction factor r304 | 0.74 | |
| Reduction factor rBrass | 0.41 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 150 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1460 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| Protection class | II | |
| Rated insulation voltage | 253 V | |
| Design-impulse-voltage withstand | 4000 V | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 �C (-13 … 185 �F) | |
| Storage temperature | -40 … 85 �C (-40 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PA-GF35 metal base Xylan coated metal mounting flange Xylan coated. |
|
| Sensing face | PA-GF35 | |
| Housing diameter | ||
| Degree of protection | IP69K | |
| Mass | 155 g | |
