Out of stock

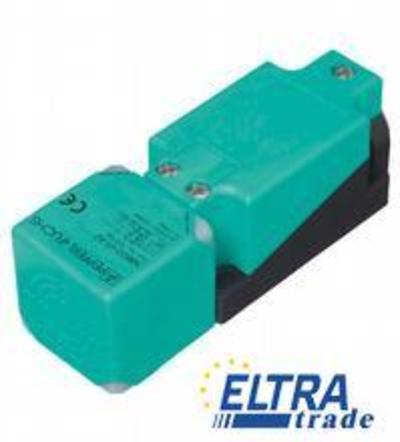

The inductive sensor from Pepperl+Fuchs is designed for non-contact detection of metallic objects. With robust performance in various industrial environments, it ensures reliable operation in automation and control applications.
Inductive proximity sensors are essential components in modern automation technology, used for detecting the presence of metallic objects without physical contact. These sensors operate on the principle of electromagnetic induction, allowing them to function in various environments, including those with dust, moisture, and vibration. They are widely utilized in manufacturing processes, packaging, and material handling systems due to their durability and precision.
Common applications for inductive sensors include:
- Position detection in machinery and conveyor systems
- Object counting and classification
- Safety applications in automated systems
- Feedback for robotic arms and automated guided vehicles
By providing a reliable means of detecting metallic objects, inductive sensors contribute significantly to the efficiency and safety of automated processes.
| General specifications | ||
| Switching element function | DC |
|
| Rated operating distance | 20 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 16.2 mm | |
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 5 … 60 V DC | |
| Switching frequency | 0 … 250 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity tolerant | |
| Short-circuit protection | yes | |
| Voltage drop | less than or equal to 5 V | |
| Operating current | 2 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| Switching state indicator | 2 LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1162 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 °C (-13 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | max. 2.5 mm2 | |
| Housing material | PA/metal with epoxy powder coating | |
| Sensing face | PA | |
| Degree of protection | IP68 / IP69K | |
| Mass | 225 g | |
| Note | Tightening torque: 1.8 Nm (housing) Tightening torque: 1.0 Nm (Screw terminal) |
|
