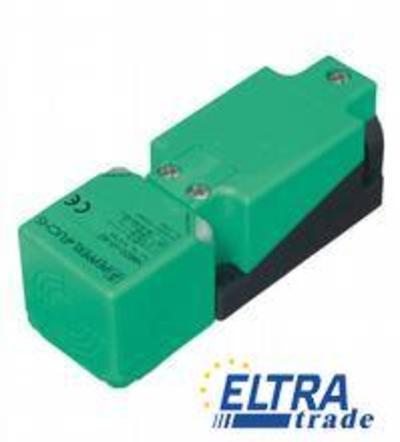

The Inductive sensor from Pepperl+Fuchs is designed for reliable detection of metallic objects within a rated operating distance of 20 mm. Its robust PA housing and 2-wire output configuration make it suitable for various industrial applications.
The inductive proximity sensor family by Pepperl+Fuchs is engineered for non-contact detection of metallic objects, utilizing electromagnetic fields to sense the presence of metal within a specific range. These sensors are commonly integrated into automation systems, providing precise and reliable feedback for applications such as assembly line monitoring, packaging, and material handling.
Constructed with durable PA housing, these sensors are built to withstand harsh industrial environments. The 2-wire output type simplifies wiring and installation, allowing for flush mounting in confined spaces. Furthermore, with DC voltage compatibility and ATEX certification for use in explosive atmospheres, these sensors ensure safety and performance across a wide range of applications.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 20 mm | |
| Installation | flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 16.2 mm | |
| Reduction factor rAl | 0.37 | |
| Reduction factor rCu | 0.35 | |
| Reduction factor r304 | 0.79 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Switching frequency | 0 … 250 Hz | |
| Hysteresis | 1 … 15 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | yes | |
| Current consumption | ||
| Measuring plate not detected | greater or equal 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Switching state indicator | LED, yellow | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic compatibility | NE 21:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 �C (-13 … 212 �F) | |
| Storage temperature | -40 … 100 �C (-40 … 212 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | less than or equal to 2.5 mm2 | |
| Housing material | PA | |
| Sensing face | PA | |
| Degree of protection | IP66 / IP68 / IP69K | |
| Mass | 225 g | |
| Note | Tightening torque: 1.8 Nm (housing) Tightening torque: 1.0 Nm (Screw terminal) |
|
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 3G | |
