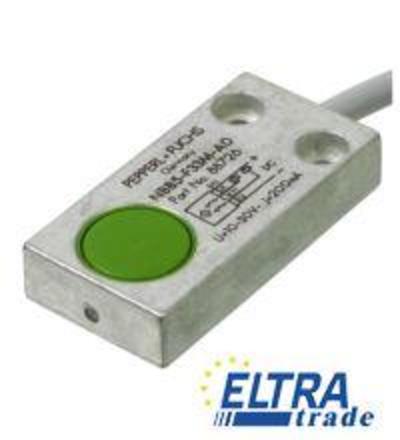

The inductive sensor is a key component in automation technology, designed for non-contact detection of metallic objects. With a rated operating distance of 5 mm, it is ideal for applications requiring precise sensing in confined spaces.
Inductive proximity sensors are widely utilized in industrial automation for the detection of metallic objects without physical contact. These sensors operate on the principle of electromagnetic induction, generating an oscillating electromagnetic field that reacts to the presence of metal within a specified range. This technology allows for reliable and efficient detection, making it suitable for various applications, including assembly lines, packaging machinery, and robotics.
The sensors are typically constructed in a robust rectangular housing made of metal, ensuring durability in demanding environments. Their flush installation capability allows for integration into equipment and machinery without protruding components, reducing the risk of damage. The sensors are powered by DC voltage and feature a 3-wire output configuration, facilitating straightforward integration into existing control systems. With a cable connection type of PVC and a length of 2 meters, installation and setup are simplified, enhancing operational efficiency.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 5 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 4.05 mm | |
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.2 | |
| Reduction factor r304 | 0.6 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED | |
| Functional safety related parameters | ||
| MTTFd | 1850 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | metal | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
