Out of stock
The Inductive sensor NBB8 offers increased working distance and an extended temperature range, making it ideal for various industrial applications. Its robust construction and functional safety features ensure reliability in demanding environments.

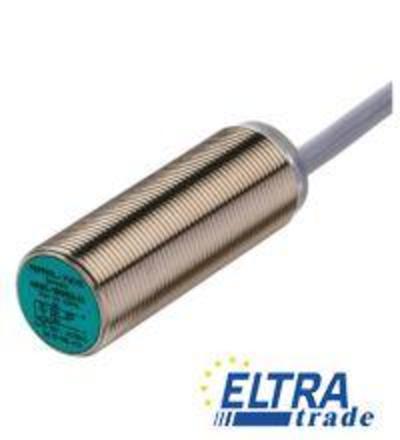

Pepperl+Fuchs inductive sensor NBB8-18GM50-E2-5M
A device for non-contact detection of metal objects. The detector has a 5-meter detachable cable and is used for various industrial applications such as industrial automation, logistics, and security.
Specifications:
- Article: 326163-0073
- Operating mode: normally open (NO)
- Output type: PNP
- Nominal working distance: 8 mm
- Installation: flush with the surface
- Output polarity: direct current
- Provided working distance: 0 … 6.48 mm
- Drop voltage: Ud: ≤ 3 V
- Operating current: IL: 0 … 200 mA
- Current in the off state: Ir: 0 … 0.5 mA, typ. 0.1 µA at 25 °C
- No-load current: I0: ≤ 15 mA
- Ambient temperature: -25 … 70 °C (-13 … 158 °F)
- Connection type: PVC cable, 5 m
- Core cross-section: 0.34 mm²
- Housing material: brass, nickel-plated
- Sensitive surface: PBT
- Degree of protection: IP67
- Connections: BN, L+, L-, BK, BU
Where it is used:
- Production automation
- Logistics
- Security
