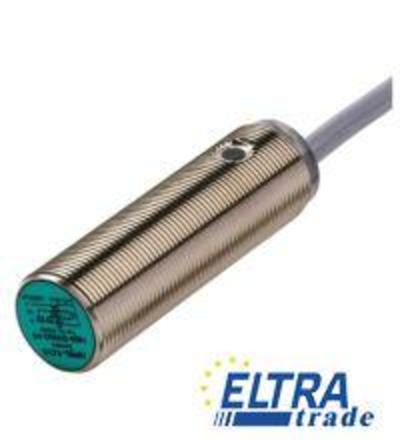

The inductive sensor is a cylindrical type proximity sensor with a housing diameter of 18 mm and a nickel-plated brass construction. It features a rated operating distance of 8 mm and is equipped with a 2 m PVC cable for easy installation.
Inductive proximity sensors are widely used in automation and control systems to detect the presence of metallic objects without physical contact. These sensors operate on the principle of electromagnetic induction, which allows them to accurately sense the proximity of ferrous and non-ferrous metals. They are particularly effective in environments where traditional mechanical switches may not be suitable due to wear and tear or contamination.
Common applications include assembly line automation, machine protection, and position detection in conveyor systems. The flush installation capability of these sensors facilitates seamless integration into machinery and equipment, minimizing the risk of accidental damage. With a robust construction and reliable performance, inductive proximity sensors are essential components in modern manufacturing processes, offering durability and precision.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 8 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 6.48 mm | |
| Reduction factor rAl | 0.45 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 25 mA | |
| Switching state indicator | all direction LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1110 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
