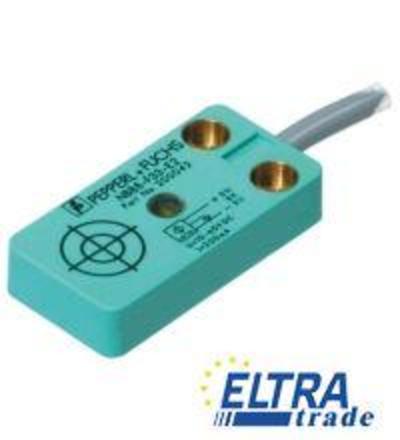

The Inductive sensor is a robust rectangular type sensor designed for reliable detection of metallic objects. With a rated operating distance of 8 mm, it is ideal for various automation applications.
Inductive proximity sensors are essential components in automation technology, primarily used for non-contact detection of metallic objects. These sensors operate based on the principle of electromagnetic induction, enabling them to sense changes in the magnetic field caused by the presence of a metal target. They are widely utilized in industrial environments where precise positioning and reliable object detection are crucial.
The inductive sensors in this product family are characterized by their durable PBT housing, making them suitable for flush installation in various applications. Common uses include assembly lines, packaging machinery, and conveyor systems, where they can effectively monitor object presence and improve operational efficiency. The sensors feature a 3-wire output and are available with a PUR cable connection, ensuring seamless integration into existing systems.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 8 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 6.48 mm | |
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.2 | |
| Reduction factor r304 | 0.6 | |
| Nominal ratings | ||
| Operating voltage | 5 … 60 V DC | |
| Switching frequency | 0 … 350 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.1 mA | |
| No-load supply current | less than or equal to 10 mA | |
| Switching state indicator | LED yellow | |
| Functional safety related parameters | ||
| MTTFd | 1140 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| e1 Type approval | 2006/28/EG | |
| Ambient conditions | ||
| Ambient temperature | -40 … 85 �C (-40 … 185 �F) | |
| Storage temperature | -40 … 85 �C (-40 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | cable PUR , 2 m | |
| Core cross-section | 0.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Housing diameter | ||
| Degree of protection | IP67 / IP69K | |
| Note | Tightening torque: 5 Nm | |
