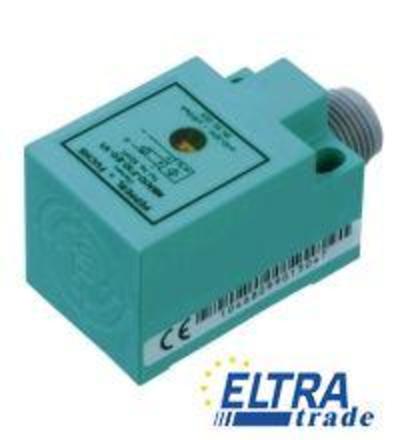

The inductive sensor series from Pepperl+Fuchs is designed for reliable non-contact detection of metallic objects. With a rated operating distance of 10 mm, these sensors are suitable for a wide range of automation applications.
Inductive proximity sensors are essential components in industrial automation, providing precise detection of metallic objects without physical contact. These sensors operate on the principle of electromagnetic induction, generating an oscillating electromagnetic field that detects changes caused by nearby metallic items. They offer high reliability and durability, making them suitable for various environments, including production lines and material handling systems.
The Pepperl+Fuchs inductive sensors are particularly valued for their robust construction, featuring a PBT housing that ensures resilience against harsh conditions. These sensors are designed for non-flush installation, which allows for greater sensing distances and more versatile mounting options. Common applications include position sensing, presence detection, and counting of metallic parts in automated systems.
- Rated operating distance: 10 mm
- Connector type: M12 x 1, 4-pin
- Output type: 3-wire DC
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 10 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 8.1 mm | |
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.2 | |
| Reduction factor r304 | 0.6 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 500 Hz | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 150 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 3390 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
