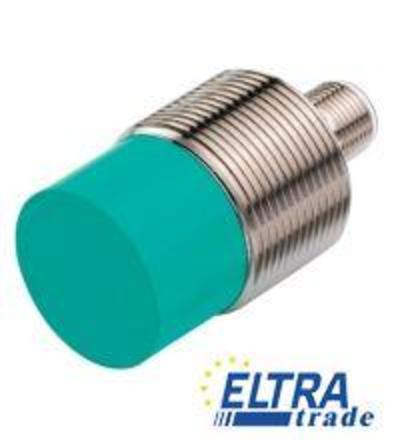

The Inductive sensor from Pepperl+Fuchs is engineered for precise non-contact detection of metallic objects. It is ideal for various industrial applications, ensuring reliable performance in demanding environments.
Inductive proximity sensors are pivotal components in automation and control systems, designed to detect the presence of metallic objects without direct contact. These sensors utilize electromagnetic fields to identify target objects, making them particularly effective in environments where traditional mechanical switches may fail due to wear or contamination.
Common applications of inductive sensors include position sensing, object counting, and safety monitoring across various industrial sectors such as manufacturing, packaging, and robotics. Their robust construction and resistance to environmental factors ensure consistent performance, thereby enhancing operational efficiency and safety in automated processes.
- Non-contact detection minimizes wear and extends sensor life.
- Ideal for use in harsh environments due to protective housings.
- Compatible with various control systems for seamless integration.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 15 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 12.15 mm ( -25 … 70 °C (-13 … 158 °F) ) 0 … 11.4 mm ( -40 … -25 °C (-40 … -13 °F) ) |
|
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.8 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 °C | |
| No-load supply current | less than or equal to 20 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1803 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP67 | |
