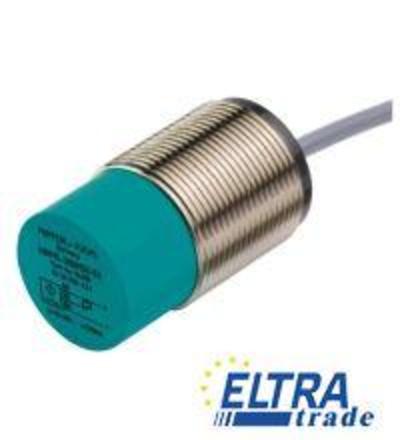

The inductive sensor is a cylindrical type sensor designed for non-flush installation, offering reliable detection of metallic objects. With a housing diameter of 30 mm made from brass and nickel-plated for durability, these sensors are suitable for a variety of industrial applications.
Inductive proximity sensors are widely used in automation and industrial applications for object detection and positioning. These sensors operate on the principle of electromagnetic induction, allowing them to detect metallic targets without direct contact. Their robust construction and reliable performance make them ideal for environments where traditional mechanical switches may fail due to wear or contamination.
Common applications for inductive sensors include position sensing in conveyor systems, safety monitoring in machinery, and automation of assembly lines. Their ability to function in harsh conditions, along with a range of operating distances, makes them versatile components in various industries such as manufacturing, packaging, and automotive. These sensors are particularly valued for their fast response times and high durability, contributing to enhanced operational efficiency.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 25 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 20.25 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.8 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | less than or equal to 10 mA | |
| No-load supply current | less than or equal to 10 mA | |
| Switching state indicator | all direction LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1260 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP67 | |
