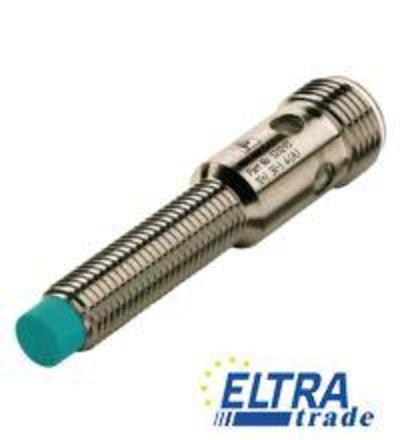

The inductive sensors from Pepperl+Fuchs are designed for reliable detection of metallic objects without direct contact. With a cylindrical housing and a diameter of 8 mm, these sensors offer a rated operating distance of 3 mm, making them ideal for various automation applications.
Pepperl+Fuchs inductive proximity sensors are widely used in industrial automation for non-contact detection of metallic objects. Their robust design allows them to function effectively in harsh environments, while the nickel-plated brass housing provides durability and resistance to corrosion. These sensors are especially suited for applications where space is limited, thanks to their compact cylindrical shape.
Common applications include position sensing, object detection, and automation tasks in manufacturing processes. The sensors operate on a 3-wire DC output and are designed for non-flush installation, ensuring reliable performance in a variety of setups. The M12 x 1 connector simplifies wiring and installation, making these sensors a preferred choice for engineers and technicians aiming to enhance operational efficiency.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 3 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 2.43 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.5 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 2000 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 100 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 2790 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 8 mm | |
| Degree of protection | IP67 | |
