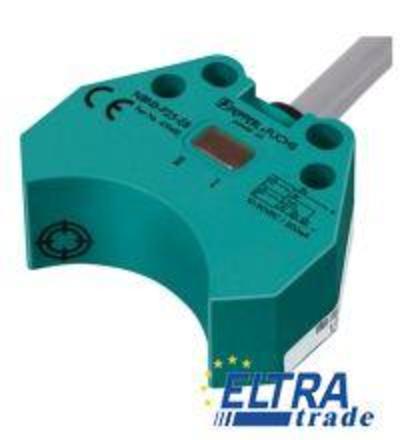

The inductive sensor is designed for non-contact detection of metallic objects, providing reliable performance in various industrial applications. Its robust construction and precise sensing capabilities make it ideal for automation and safety systems.
Inductive proximity sensors are essential components in automation technology, recognized for their ability to detect metallic objects without physical contact. These sensors operate based on the principle of electromagnetic induction, allowing them to sense the presence of metal within a specified range. This non-contact detection method not only enhances the lifespan of the sensor but also contributes to the overall efficiency of industrial systems.
Common applications of inductive sensors include position detection, object counting, and end-of-travel sensing in machinery. They are widely utilized in manufacturing processes, packaging, and material handling systems, where precise and reliable detection is critical. The sensors are designed to withstand harsh environments, making them suitable for use in factories and warehouses where dust, moisture, and vibrations are prevalent.
With a variety of sensing distances and configurations available, inductive proximity sensors can be tailored to meet specific application requirements, ensuring optimal performance across diverse industrial settings.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 3 mm | |
| Installation | flush mountable | |
| Output polarity | DC | |
| Assured operating distance | 0 … 2.43 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1.1 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | all connections | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 °C | |
| No-load supply current | less than or equal to 25 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 5 m | |
| Core cross-section | 0.75 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| Tightening torque, fastening screws | M5 x 25 : 2.7 Nm | |
| Note | Mounted on mechanical drive | |
