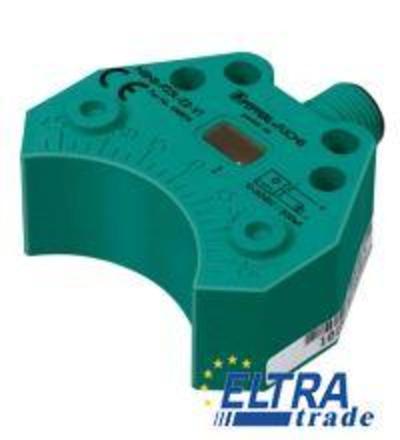

The inductive sensor is a reliable and precise device designed for non-contact detection of metallic objects. With a rated operating distance of 3 mm, it provides efficient performance in various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, primarily used for detecting the presence or absence of metallic objects without physical contact. These sensors operate based on the principle of electromagnetic induction, providing a robust solution for various applications in manufacturing, packaging, and material handling.
Typically, inductive sensors are available in various shapes and sizes, including rectangular types, and are often constructed from materials such as PBT to ensure durability in challenging environments. Their flush mountable design allows for easy integration into machinery and equipment, making them suitable for confined spaces. Common applications include positioning, counting, and presence detection in conveyor systems, automated assembly lines, and safety interlocks.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 3 mm | |
| Installation | flush mountable | |
| Output polarity | DC | |
| Assured operating distance | 0 … 2.43 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1.2 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | all connections | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 25 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Storage temperature | -40 … 85 �C (-40 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| Tightening torque, fastening screws | M5 x 25 : 2.7 Nm | |
| Note | Mounted on mechanical drive | |
