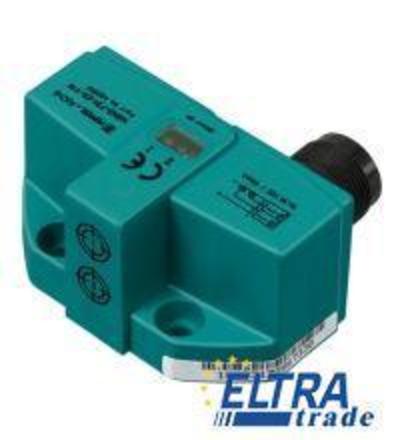

The inductive sensor is designed for non-contact detection of metallic objects, making it ideal for various industrial automation applications. With its robust rectangular housing made of PBT, this sensor offers durability and reliability in challenging environments.
Inductive proximity sensors are essential components in automation technology, widely used for detecting the presence of metal objects without physical contact. These sensors operate based on the principle of electromagnetic induction, allowing them to provide output signals when a metallic target enters their sensing range. Their non-contact nature minimizes wear and tear, ensuring a longer operational lifespan.
Common applications for inductive sensors include position sensing in automated machinery, object detection on assembly lines, and safety applications in manufacturing settings. These sensors can be seamlessly integrated into various systems due to their flush mountable design and multiple output configurations. Their ability to function reliably in harsh environments makes them suitable for diverse sectors such as automotive, packaging, and material handling.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 3 mm | |
| Installation | flush mountable | |
| Output polarity | DC | |
| Assured operating distance | 0 … 2.43 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1.2 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | all connections | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 100 mA | |
| Off-state current | 0 … 0.1 mA typ. 20 mA at 25 �C | |
| No-load supply current | less than or equal to 25 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 780 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M18 x 1 , 4-pin | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
