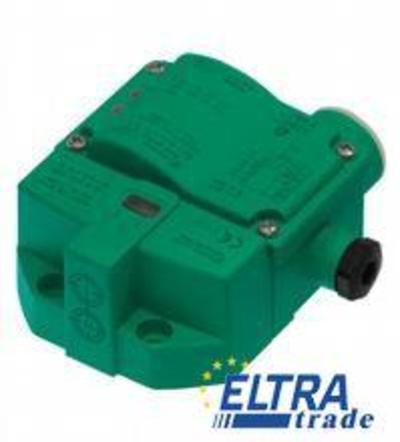

The inductive sensor is designed for reliable detection of metallic objects in a variety of industrial applications. With a rated operating distance of 3 mm, it excels in environments where precision and durability are essential.
Inductive proximity sensors are widely utilized in automation technology for non-contact detection of metallic objects. These sensors operate on the principle of electromagnetic induction, allowing them to detect the presence of metal without direct contact, which reduces wear and tear and enhances service life. The rectangular housing design made from PBT ensures durability and resistance to harsh environments, making it ideal for industrial applications.
Common applications include positioning and presence detection in conveyor systems, robotic arms, and automated machinery. These sensors can be easily integrated into existing systems, thanks to their flush mountable installation and 4-wire output configuration. Their ability to function in diverse conditions, combined with a DC voltage type, makes them versatile components in modern automation and control setups.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 3 mm | |
| Installation | flush mountable | |
| Output polarity | DC | |
| Assured operating distance | 0 … 2.43 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1.2 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | all connections | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 100 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA | |
| No-load supply current | less than or equal to 25 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Valve status indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 780 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection (system side) | Cage tension spring terminals | |
| Core cross-section (system side) | 1.5/2.5 mm2 flexible/rigid | |
| Connection (valve side) | Cage tension spring terminals | |
| Core cross-section (valve side) | 1.5/2.5 mm2 flexible/rigid | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| Tightening torque, housing screws | 1 Nm | |
| Tightening torque, cable gland | M20 x 1.5 – max. 7 Nm M12 x 1.5 – max. 3 Nm |
|
