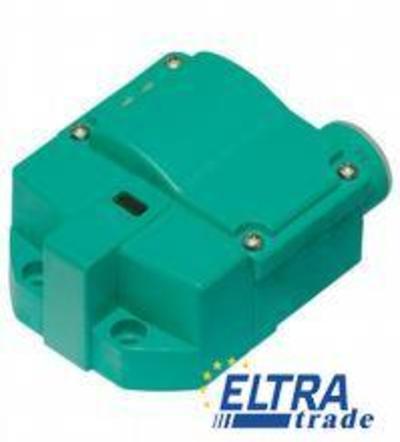

The inductive sensor is designed for non-contact detection of metallic objects, leveraging electromagnetic fields for reliable performance. With a rated operating distance of 3 mm, this sensor can effectively detect targets within its specified range.
Pepperl+Fuchs inductive proximity sensors are essential components in various automation applications, providing high reliability and durability in detecting metallic objects without direct contact. These sensors utilize an oscillating electromagnetic field to sense the presence of metallic targets, making them ideal for use in environments where physical contact is not feasible or desired.
Common applications of inductive sensors include automation in manufacturing processes, material handling systems, and safety equipment. Their robust design allows for flush mounting, and they are constructed from durable PBT housing material, ensuring longevity even in harsh conditions. With a 4-wire output configuration and cage tension spring terminals for connection, these sensors facilitate easy integration into existing systems, making them a versatile solution for detecting moving parts or ensuring safety in industrial environments.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 3 mm | |
| Installation | flush mountable | |
| Output polarity | DC | |
| Assured operating distance | 0 … 2.43 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1.2 | |
| Reduction factor rBrass | ||
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | all connections | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 100 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA | |
| No-load supply current | less than or equal to 25 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection (system side) | Cage tension spring terminals | |
| Core cross-section (system side) | 1.5/2.5 mm2 flexible/rigid | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| Tightening torque, housing screws | 1 Nm | |
| Tightening torque, cable gland | M20 x 1.5 – max. 7 Nm | |
