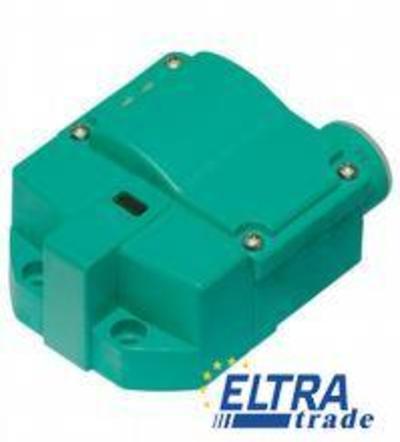

The inductive sensor series offers reliable detection of metallic objects at a rated operating distance of 3 mm. With a robust PBT housing, these sensors are suitable for various industrial applications.
Inductive proximity sensors are essential components in modern automation and control systems, designed to detect the presence of metallic objects without direct contact. Their flush mountable design allows for seamless integration into machinery and equipment, making them ideal for space-constrained environments. These sensors operate on the principle of electromagnetic induction, generating a high-frequency oscillating field that detects changes caused by metallic objects entering its sensing range.
Common applications of inductive sensors include position sensing, object counting, and end-of-arm tooling in robotic applications. They are widely used in industries such as manufacturing, packaging, and material handling, where precise and reliable detection is crucial. The 2-wire output configuration simplifies installation and connection within a system, thereby enhancing the overall efficiency and performance of automated processes.
| General specifications | ||
| Switching element function | DC binary NO | |
| Rated operating distance | 3 mm | |
| Installation | flush mountable | |
| Output polarity | DC | |
| Assured operating distance | 0 … 2.43 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1.1 | |
| Nominal ratings | ||
| Operating voltage | 6 … 60 V DC | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity tolerant | |
| Short-circuit protection | no | |
| Voltage drop | less than or equal to 6 V | |
| Operating current | 4 … 100 mA | |
| Lowest operating current | 4 mA | |
| Off-state current | 0 … 1 mA typ. 0.7 mA | |
| Switching state indicator | LED, yellow | |
| Limit data | ||
| Tightening torque, fastening screws | 0.4 Nm | |
| Functional safety related parameters | ||
| MTTFd | 590 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection (system side) | Cage tension spring terminals | |
| Core cross-section (system side) | 1.5/2.5 mm2 flexible/rigid | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| Tightening torque, housing screws | 1 Nm | |
| Tightening torque, cable gland | M20 x 1.5 – max. 7 Nm | |
