The inductive sensor is a key component in automation technology, designed to detect metallic objects without direct contact. Its robust construction and reliable performance make it suitable for various industrial applications.

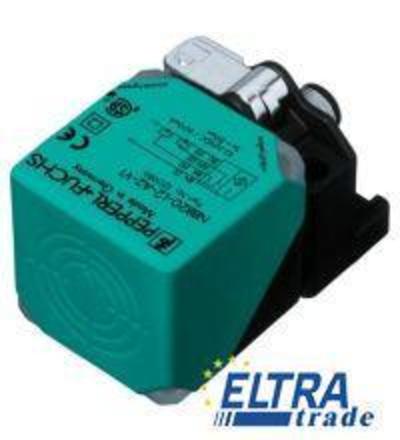

The inductive sensors from Pepperl+Fuchs are engineered for non-contact detection of metallic objects within a specified range. These sensors utilize electromagnetic fields to sense the presence of metal, providing a reliable solution for automation tasks in manufacturing and process control. With their compact design and durable PA housing, these sensors are ideal for installation in confined spaces and harsh environments.
Common applications for inductive sensors include position detection, object counting, and end-of-travel sensing in machinery. They are widely used in sectors such as automotive, packaging, and material handling due to their high accuracy and durability. The sensors operate on a DC voltage and feature a 3-wire output configuration, ensuring compatibility with various control systems.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 30 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 24.3 mm | |
| Reduction factor rAl | 0.33 | |
| Reduction factor rCu | 0.31 | |
| Reduction factor r304 | 0.74 | |
| Reduction factor rBrass | 0.38 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 150 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1510 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| Protection class | II | |
| Rated insulation voltage | 253 V | |
| Design-impulse-voltage withstand | 4000 V | |
| UL approval | cULus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 �C (-13 … 185 �F) | |
| Storage temperature | -40 … 85 �C (-40 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PA | |
| Sensing face | PA | |
| Housing diameter | ||
| Degree of protection | IP69K | |
| Mass | 130 g | |
