Out of stock

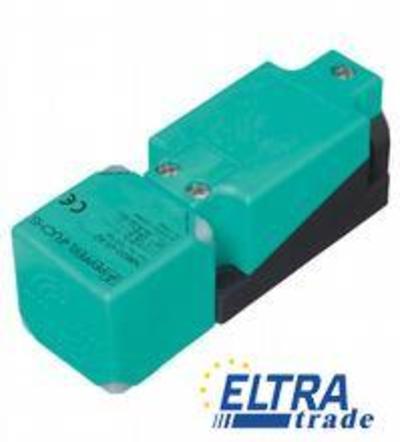

The inductive sensor series from Pepperl+Fuchs is designed for reliable detection of metallic objects without direct contact. These sensors offer a rated operating distance of 30 mm and are ideal for various industrial applications.
Pepperl+Fuchs inductive proximity sensors are essential components in automation and control systems, providing non-contact detection of metallic objects. These sensors utilize electromagnetic induction to sense the presence of metal, making them suitable for diverse environments where contact-based sensors may fail due to wear or contamination.
Common applications include position detection, object counting, and end-of-travel sensing in machinery and robotics. With a robust housing made from PA/metal and epoxy powder coating, these sensors are built to withstand harsh industrial conditions while maintaining high reliability. Their 2-wire output configuration and screw terminal connection type facilitate easy installation and integration into existing systems, ensuring optimal performance in a variety of settings.
| General specifications | ||
| Switching element function | DC |
|
| Rated operating distance | 30 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 24.3 mm | |
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 5 … 60 V | |
| Switching frequency | 0 … 150 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity tolerant | |
| Short-circuit protection | yes | |
| Voltage drop | less than or equal to 5 V | |
| Operating current | 2 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| Switching state indicator | 2 LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1170 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 �C (-13 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | max. 2.5 mm2 | |
| Housing material | PA/metal with epoxy powder coating | |
| Sensing face | PA | |
| Degree of protection | IP68 / IP69K | |
| Mass | 225 g | |
| Note | Tightening torque: 1.8 Nm (housing) Tightening torque: 1.0 Nm (Screw terminal) |
|
