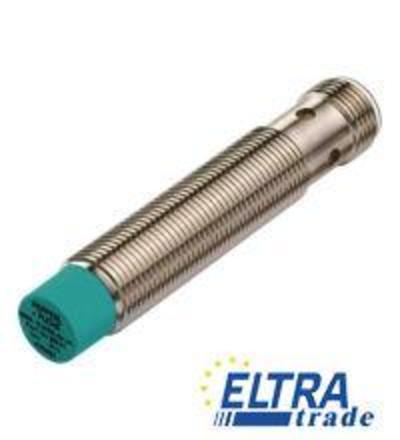

The inductive sensor from Pepperl+Fuchs is designed for reliable detection of metallic objects. Its cylindrical form factor and robust construction make it suitable for various industrial applications.
Inductive proximity sensors are essential components in modern automation and control systems. They operate on the principle of electromagnetic induction, allowing them to detect the presence of metallic objects without physical contact. This non-contact sensing capability minimizes wear and tear, enhancing the longevity and reliability of the sensor in harsh industrial environments.
Common applications of inductive proximity sensors include position sensing, object counting, and safety monitoring in manufacturing processes. They can be found in various sectors such as automotive, packaging, and material handling, where precise and reliable detection is crucial. With a range of housing types and sizes, these sensors can be seamlessly integrated into different machinery and equipment, ensuring optimal performance across diverse applications.
| General specifications | ||
| Switching element function | NPN |
|
| Rated operating distance | 4 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 3.24 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.8 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 1200 Hz | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 17 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1600 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
