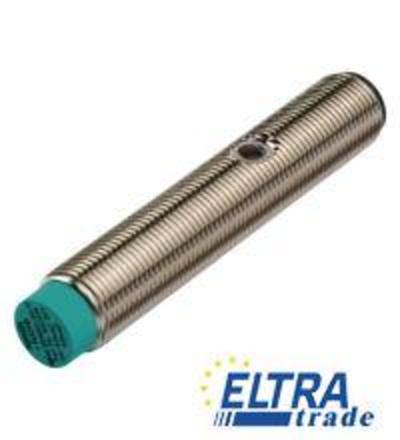

The inductive sensor series from Pepperl+Fuchs offers reliable proximity detection in various industrial applications. With a cylindrical type design and a housing diameter of 12 mm, these sensors are built for durability and precision.
Inductive proximity sensors are essential components in automation technology, primarily designed to detect metallic objects without physical contact. These sensors operate on the principle of electromagnetic induction, generating a field that can sense the presence of metal within a specified range. The robust design and compact size make them suitable for integration into various machinery and equipment.
Common applications of inductive sensors include position sensing, object detection, and speed monitoring in manufacturing lines, packaging machines, and conveyor systems. They excel in environments where traditional mechanical switches may fail due to wear or contamination. With a rated operating distance of 4 mm, these sensors provide high reliability and consistent performance under diverse operating conditions.
- Housing Material: Brass, nickel-plated
- Connection Type: Connector M12 x 1, 4-pin
- Output Type: 4-wire
- Type of Voltage: DC
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 4 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 3.24 mm | |
| Reduction factor rAl | 0.45 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 1200 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 °C | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 3220 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
