Out of stock

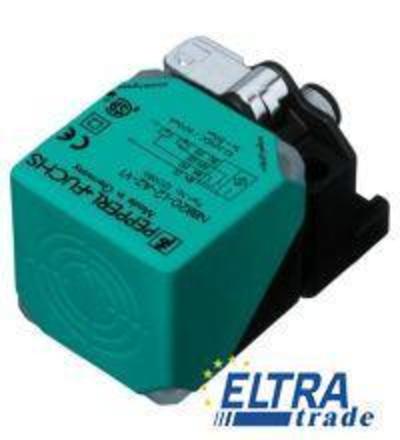

The inductive sensor from Pepperl+Fuchs is designed for reliable detection of metallic objects. With a rated operating distance of 40 mm, it offers robust performance in various industrial applications.
Inductive proximity sensors are widely used in automation and industrial applications for non-contact detection of metal objects. These sensors operate based on the principle of electromagnetic induction, where a varying electromagnetic field generates a signal when a metallic object enters the sensing range. The Pepperl+Fuchs inductive sensors are particularly known for their reliability, precision, and durability in harsh environments.
Common applications include position detection, object counting, and end-of-stroke detection in machinery. The sensors are designed to be installed in non-flush configurations, making them suitable for various mounting conditions. Their compatibility with a 4-wire output type and M12 x 1 connector simplifies integration into existing systems, ensuring seamless communication with control units.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 40 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 32.4 mm | |
| Reduction factor rAl | 0.33 | |
| Reduction factor rCu | 0.31 | |
| Reduction factor r304 | 0.74 | |
| Reduction factor rBrass | 0.41 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 100 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1237 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| Protection class | II | |
| Rated insulation voltage | 253 V | |
| Design-impulse-voltage withstand | 4000 V | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 �C (-13 … 185 �F) | |
| Storage temperature | -40 … 85 �C (-40 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PA | |
| Sensing face | PA | |
| Housing diameter | ||
| Degree of protection | IP69K | |
| Mass | 130 g | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 3G- 3D | |
