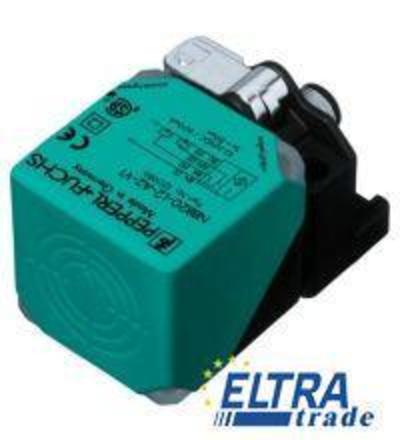

The inductive sensor from the VariKont L series is designed for reliable detection of metallic objects. With a rated operating distance of 40 mm, it ensures accurate sensing in various industrial applications.
The VariKont L series inductive proximity sensors are engineered for precision and reliability in detecting metallic objects without direct contact. These sensors utilize electromagnetic fields to sense the presence or absence of metal, making them ideal for applications in automation, machinery, and material handling. Their robust design and non-flush installation capability allow them to function effectively in a variety of environments, including those with challenging conditions.
Featuring a durable PA housing and a compact design, these sensors are equipped with a 4-pin M12 x 1 connector for straightforward integration into existing systems. Operating on DC voltage, they support a wide range of applications, from position sensing to speed monitoring. Their versatility and reliability make them an essential component in modern industrial automation setups.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 40 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 32.4 mm | |
| Reduction factor rAl | 0.31 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.74 | |
| Reduction factor rBrass | 0.39 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 100 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1230 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| Protection class | II | |
| Rated insulation voltage | 253 V | |
| Design-impulse-voltage withstand | 4000 V | |
| UL approval | cULus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 �C (-13 … 185 �F) | |
| Storage temperature | -40 … 85 �C (-40 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PA | |
| Sensing face | PA | |
| Housing diameter | ||
| Degree of protection | IP69K | |
