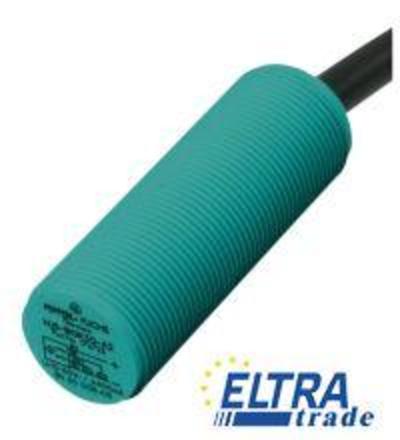

The inductive sensor from Pepperl+Fuchs is designed for reliable non-contact detection of metallic objects. With a cylindrical housing diameter of 18 mm and a rated operating distance of 8 mm, this sensor is suitable for various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, particularly for detecting the presence or absence of metallic objects without physical contact. These sensors operate based on the principle of electromagnetic induction, generating an oscillating electromagnetic field that can sense changes caused by nearby metal objects. The cylindrical design and robust housing material, typically PBT, ensure durability and reliability in demanding environments.
Common applications for inductive sensors include position sensing, object counting, and speed detection across various industries such as manufacturing, packaging, and robotics. These sensors are often used in assembly lines, conveyor systems, and material handling processes to enhance efficiency and safety. The 3-wire output configuration allows for versatile integration into existing control systems, making them a preferred choice for many automation solutions.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 8 mm | |
| Installation | non-flush | |
| Assured operating distance | 0 … 6.48 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 500 Hz | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 3280 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 5 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP68 / IP69K | |
| Note | use only delivered nuts | |
