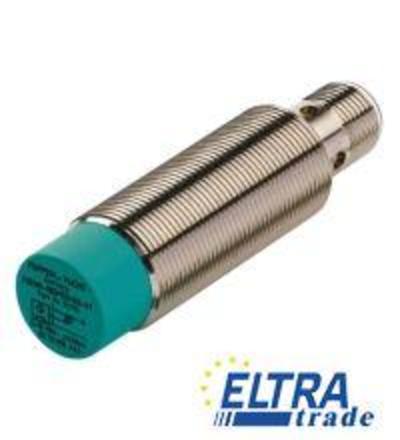

The inductive sensor is a cylindrical type sensor designed for non-flush installation applications. With a housing diameter of 18 mm and a nickel-plated brass construction, it ensures durability and reliability in various industrial environments.
Inductive proximity sensors are widely used in automation and control systems for detecting the presence of metallic objects without physical contact. These sensors operate based on the principle of electromagnetic induction, allowing them to provide reliable and accurate measurements in harsh environments.
The cylindrical design of these sensors, with a standard housing diameter of 18 mm, makes them suitable for a variety of applications, including machine automation, assembly lines, and material handling systems. The rated operating distance of 8 mm ensures effective detection of target objects, while the robust nickel-plated brass housing provides resistance to corrosion and wear.
Typical applications for inductive sensors include position detection, end-of-stroke sensing, and object counting. The 3-wire output configuration and M12 x 1 connector facilitate easy integration into existing systems, making these sensors a versatile choice for industries requiring reliable non-contact detection solutions.
| General specifications | ||
| Switching element function | NPN |
|
| Rated operating distance | 8 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 6.48 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 18 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1920 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
