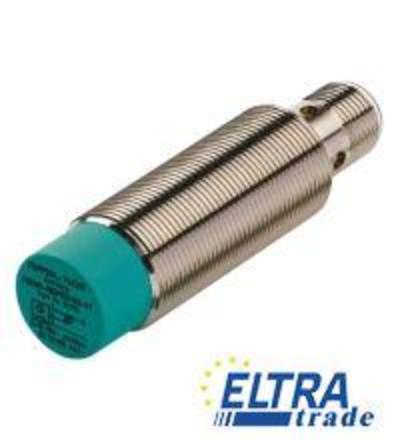

The inductive sensor is designed for reliable detection of metallic objects within its rated operating distance. With a cylindrical housing and a durable nickel-plated brass construction, this sensor offers robustness in various industrial applications.
Inductive proximity sensors from Pepperl+Fuchs are essential devices used for the non-contact detection of metallic objects in automation and control systems. These sensors operate on the principle of electromagnetic induction, generating a field that detects changes caused by the presence of metal within a specified range. Their cylindrical design, typically with a housing diameter of 18 mm, allows for easy integration into a variety of environments.
Common applications for inductive proximity sensors include position sensing, object counting, and machine safety systems in manufacturing and assembly lines. They are particularly valued in environments where traditional mechanical switches may fail due to wear or contamination. With a rated operating distance of 8 mm and a durable brass housing, these sensors are well-suited for use in harsh industrial conditions, providing reliable performance and longevity.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 8 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 6.48 mm ( -25 … 70 °C (-13 … 158 °F) ) 0 … 6.08 mm ( -40 … -25 °C (-40 … -13 °F) ) |
|
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 °C | |
| No-load supply current | less than or equal to 18 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1190 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
