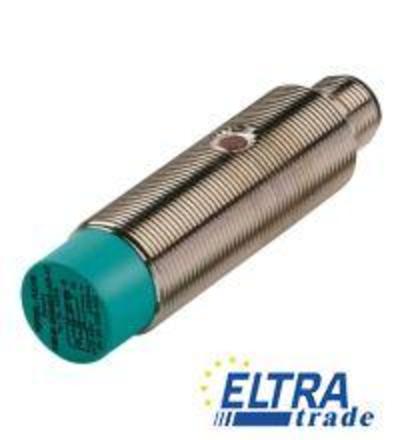

The inductive sensor series offers robust performance with a cylindrical housing design, featuring a diameter of 18 mm. Constructed from nickel-plated brass, these sensors provide a rated operating distance of 8 mm and are designed for DC voltage applications.
Inductive proximity sensors are widely used in automation and industrial applications for detecting metal objects without direct contact. They operate on the principle of electromagnetic fields, allowing them to detect the presence of metallic targets efficiently and reliably. This type of sensor is particularly suitable for environments where contact-based sensors may fail due to wear or contamination.
Common applications for inductive sensors include positioning, counting, and presence detection in machinery and conveyor systems. Their non-flush installation capability and robust construction make them ideal for use in harsh conditions where durability and precision are paramount. With features like a 4-wire output and M12 x 1 connector, these sensors are designed for easy integration into existing systems, ensuring seamless operation across various industrial settings.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 8 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 6.48 mm | |
| Reduction factor rAl | 0.45 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 700 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 °C | |
| No-load supply current | less than or equal to 20 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1140 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
