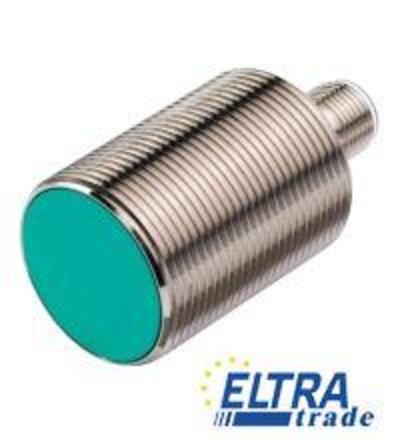

This inductive sensor series features a cylindrical design with a housing diameter of 30 mm, constructed from durable stainless steel 1.4305 / AISI 303. With a rated operating distance of 10 mm, it is ideal for reliable detection in various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, providing non-contact detection of metallic objects. These sensors operate on the principle of electromagnetic induction, generating an oscillating electromagnetic field that detects changes caused by the presence of conductive materials. The cylindrical design not only facilitates flush installation but also enhances the sensor’s durability, making it suitable for harsh industrial environments.
Common applications for inductive proximity sensors include position sensing, speed monitoring, and object counting in manufacturing processes. Their robust construction, including stainless steel housings, ensures longevity and reliability in various settings, including those with challenging conditions such as dust, moisture, and vibrations. Furthermore, these sensors support a 2-wire output configuration and are compatible with standard M12 connector types, simplifying integration into existing systems and enhancing operational efficiency.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 10 mm | |
| Installation | flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 8.1 mm | |
| Reduction factor rAl | 0.35 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Nominal voltage | 8 V | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | 1 … 15 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | yes | |
| Current consumption | ||
| Measuring plate not detected | min. 2.2 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic compatibility | NE 21:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Storage temperature | -40 … 100 °C (-40 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 3G- 1D- 3D | |
