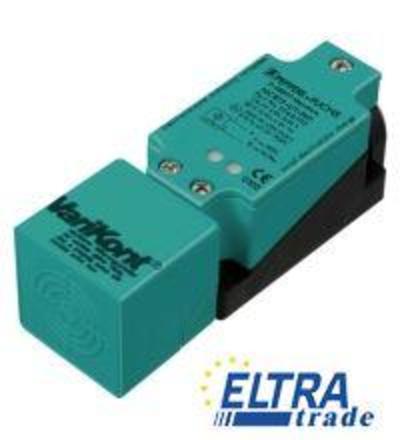

The inductive sensor features a robust PBT housing and a rated operating distance of 15 mm. Designed for reliable performance, it utilizes a 2-wire output and is suitable for embeddable installation.
Pepperl+Fuchs inductive proximity sensors are designed to detect metallic objects without direct contact, providing reliable and precise sensing solutions for various industrial applications. These sensors operate on the principle of electromagnetic induction, generating a field that responds when a metal object enters its proximity.
Commonly used in automation, material handling, and packaging industries, these sensors are ideal for detecting the presence or absence of objects in assembly lines and conveyor systems. The embeddable design allows for flexible installation in confined spaces, while the durable PBT housing ensures protection against harsh environmental conditions.
With a 2-wire output type, these sensors facilitate easy wiring and integration into existing systems, making them a practical choice for enhancing operational efficiency and safety in industrial environments.
| General specifications | ||
| Switching element function | AC/DC |
|
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | AC/DC | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.28 | |
| Reduction factor rCu | 0.25 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Operating voltage | 20 … 253 V | |
| Operating voltage DC | 20 … 300 V | |
| Switching frequency | 0 … 25 Hz | |
| Hysteresis | typ. 3 % | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 4 V | |
| Momentary current (20 ms, 0.1 Hz) |
0 … 3000 mA | |
| Operating current | 5 … 500 mA | |
| Off-state current | 0 … 2.5 mA typ. 1.5 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | terminal compartment | |
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
