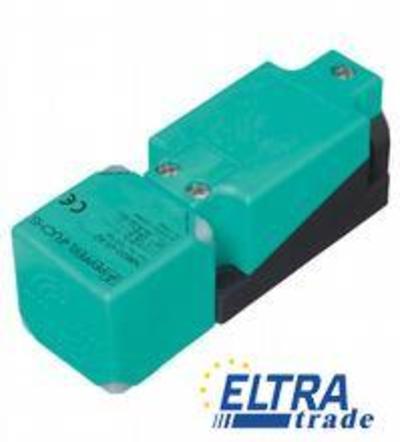

The inductive sensor series from Pepperl+Fuchs is designed for precise detection of metallic objects through non-contact sensing. With a rated operating distance of 15 mm, this sensor is suitable for various industrial applications requiring reliable performance.
Inductive proximity sensors are essential components in automation and control systems, widely used for detecting the presence of metallic objects without physical contact. Utilizing the principle of electromagnetic induction, these sensors generate an oscillating electromagnetic field that responds to changes caused by nearby metal objects. This capability allows for precise and reliable sensing in a variety of industrial environments.
The inductive sensors in this product family are characterized by their durable housing made from PBT and metal, ensuring robustness in demanding conditions. They feature a flush installation design, making them ideal for applications where space is limited. Common uses include position detection, object counting, and safety applications in manufacturing lines, conveyors, and robotic systems. Their 2-wire output and screw terminal connection type facilitate easy integration into existing systems, ensuring quick and efficient installation.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.28 | |
| Reduction factor rCu | 0.25 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Switching frequency | 0 … 400 Hz | |
| Hysteresis | 1 … 15 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | yes | |
| Current consumption | ||
| Measuring plate not detected | min. 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Switching state indicator | LED, yellow | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic compatibility | NE 21:2007 | |
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 �C (-13 … 212 �F) | |
| Storage temperature | -40 … 100 �C (-40 … 212 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | less than or equal to 2.5 mm2 | |
| Housing material | PBT/metal | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 1D | |
