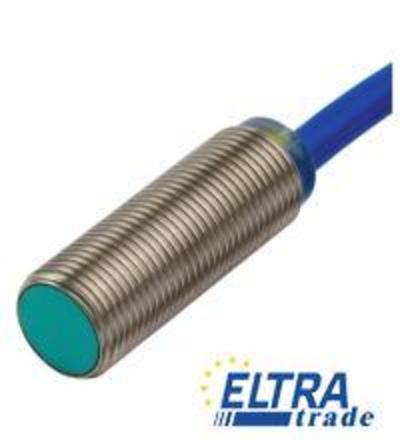

The inductive sensor is designed for reliable non-contact detection of metallic objects in industrial environments. Its robust construction and high sensitivity make it suitable for various automation applications.
Inductive proximity sensors are critical components in automation technology, providing non-contact detection of metallic objects. These sensors operate on the principle of electromagnetic induction, generating an oscillating electromagnetic field that can detect changes when a metallic object enters its range. This technology enables precise and quick sensing, making it ideal for various applications in manufacturing, assembly lines, and packaging.
Common applications for inductive proximity sensors include position sensing, object counting, and end-of-stroke detection. They are extensively used in conveyor systems, robotic equipment, and safety interlocks, among others. Their ability to function in harsh industrial conditions, coupled with their immunity to dust and moisture, ensures reliable performance in diverse settings.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 2 mm | |
| Installation | flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 1.62 mm | |
| Reduction factor rAl | 0.23 | |
| Reduction factor rCu | 0.21 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Nominal voltage | 8 V | |
| Switching frequency | 0 … 1000 Hz | |
| Hysteresis | 1 … 10 typ. 3 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | yes | |
| Suitable for 2:1 technology | yes , Reverse polarity protection diode not required | |
| Current consumption | ||
| Measuring plate not detected | min. 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Switching state indicator | all direction LED, yellow | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic compatibility | NE 21:2007 | |
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Storage temperature | -40 … 100 °C (-40 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 5 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 3G- 1D- 3D | |
