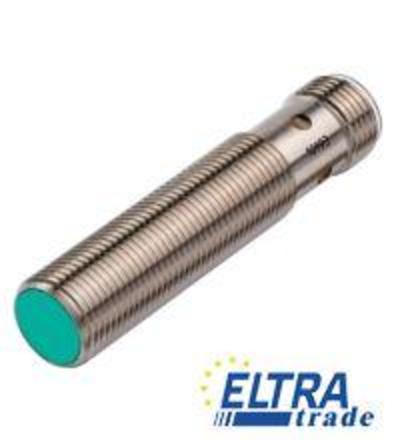

The inductive sensor is a highly reliable and precise device designed for non-contact detection of metallic objects. Its robust construction and advanced sensing technology make it suitable for various industrial applications.
Inductive proximity sensors are essential components in automation technology, providing non-contact detection of metallic objects through electromagnetic fields. These sensors operate based on the principle of inductance, where a change in the electromagnetic field occurs when a metallic object enters the sensing range. This technology allows for accurate detection without the need for physical contact, reducing wear and tear on both the sensor and the target object.
Common applications of inductive proximity sensors include position sensing, object counting, and speed measurement in manufacturing and assembly lines. They are widely used in various industries such as automotive, packaging, and material handling. The sensors are designed to function reliably in harsh environments, featuring protection against dust, moisture, and mechanical stress, making them suitable for use in a variety of challenging operational conditions.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 4 mm | |
| Installation | flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 3.24 mm | |
| Reduction factor rAl | 0.41 | |
| Reduction factor rCu | 0.39 | |
| Reduction factor r304 | 0.78 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Switching frequency | 0 … 1500 Hz | |
| Hysteresis | 1 … 15 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | yes | |
| Suitable for 2:1 technology | yes , Reverse polarity protection diode not required | |
| Current consumption | ||
| Measuring plate not detected | min. 2.2 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 3010 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic compatibility | NE 21:2007 | |
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Storage temperature | -40 … 100 °C (-40 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Core cross-section | – | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 3G- 3D | |
