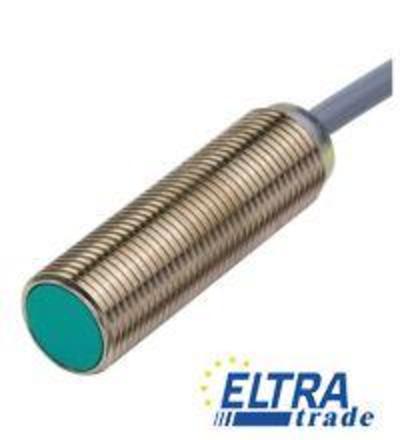

The inductive sensor from Pepperl+Fuchs is designed for precise proximity detection in various industrial applications. With a robust stainless steel housing and a rated operating distance of 4 mm, this sensor ensures reliable performance in demanding environments.
Pepperl+Fuchs inductive proximity sensors are essential components in automated systems, providing non-contact detection of metallic objects. These sensors utilize electromagnetic fields to sense the presence of metal within a specified range, making them ideal for applications in manufacturing, packaging, and assembly lines.
Featuring a cylindrical design, these sensors are typically installed flush, allowing for seamless integration into machinery and equipment. The stainless steel housing offers durability and resistance to harsh environmental conditions, while the 2-wire output type ensures straightforward connectivity. Commonly used in applications where space is limited, inductive sensors are favored for their reliability and accuracy, contributing significantly to process optimization and safety in industrial settings.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 4 mm | |
| Installation | flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 3.24 mm | |
| Reduction factor rAl | 0.41 | |
| Reduction factor rCu | 0.39 | |
| Reduction factor r304 | 0.78 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Switching frequency | 0 … 1500 Hz | |
| Hysteresis | 1 … 15 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | yes | |
| Suitable for 2:1 technology | yes , Reverse polarity protection diode not required | |
| Current consumption | ||
| Measuring plate not detected | min. 2.2 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Switching state indicator | all direction LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 3010 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic compatibility | NE 21:2007 | |
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Storage temperature | -40 … 100 °C (-40 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 3G | |
