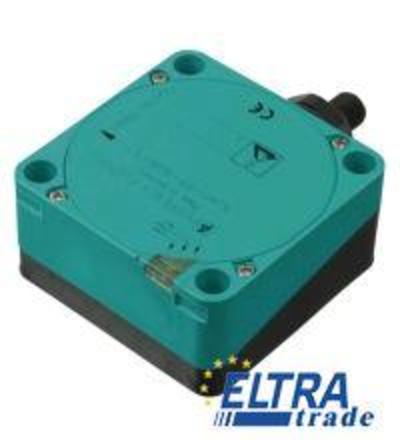

This inductive sensor is designed for reliable detection of metallic objects at a rated operating distance of 40 mm. With a robust PBT housing and a 4-pin M12 connector, it ensures efficient integration into various applications.
The inductive proximity sensors from Pepperl+Fuchs are engineered to detect metallic objects without direct contact. Utilizing electromagnetic fields, these sensors offer high reliability and durability in demanding industrial environments. They are particularly suited for applications in automation, material handling, and manufacturing processes where precise object detection is crucial.
These sensors are typically installed flush, allowing for seamless integration into machinery and equipment. Their DC voltage type operation enhances versatility, enabling compatibility with a range of control systems. The 4-wire output configuration ensures reliable signal transmission, making them ideal for diverse applications such as positioning, counting, and end-of-travel detection.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 40 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 32.4 mm | |
| Reduction factor rAl | 0.25 | |
| Reduction factor rCu | 0.23 | |
| Reduction factor r304 | 0.85 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V | |
| Switching frequency | 0 … 80 Hz | |
| Hysteresis | typ. 3 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 630 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
