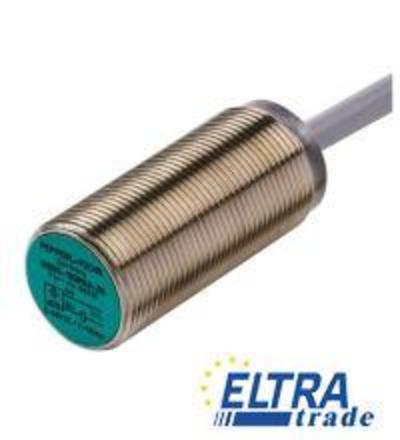

The inductive sensor is a cylindrical-type proximity sensor with a housing diameter of 18 mm, made from stainless steel 1.4305 / AISI 303. It features a rated operating distance of 5 mm and utilizes a 2-wire DC output with a 2 m PUR cable connection.
Inductive proximity sensors are essential components in various industrial automation applications. They detect metallic objects without direct contact, providing reliable and precise sensing capabilities. The design of these sensors allows for easy integration into machinery and equipment, making them suitable for a wide range of environments.
Common applications include object detection, position sensing, and counting tasks in manufacturing processes. Their robust construction, often featuring stainless steel housings, ensures durability and resistance to harsh conditions, such as moisture and dust. With their ability to operate over short distances, these sensors are particularly effective in confined spaces where traditional mechanical switches may fail.
Furthermore, inductive sensors are favored for their long service life and low maintenance requirements, contributing to enhanced operational efficiency in automatic systems. Their versatility also allows for installation in various orientations, making them adaptable to specific application needs.
| General specifications | ||
| Switching element function | DC |
|
| Rated operating distance | 5 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 4.05 mm | |
| Reduction factor rAl | 0.37 | |
| Reduction factor rCu | 0.33 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 5 … 60 V | |
| Switching frequency | 0 … 350 Hz | |
| Hysteresis | 1 … 10 typ. 5 % | |
| Reverse polarity protection | reverse polarity tolerant | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 5 V | |
| Operating current | 2 … 100 mA | |
| Lowest operating current | 2 mA | |
| Off-state current | 0 … 0.5 mA typ. | |
| Switching state indicator | all direction LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | cable PUR , 2 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
