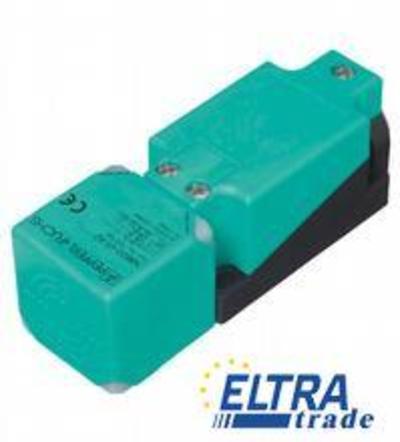

The inductive sensor from Pepperl+Fuchs is a robust rectangular type sensor designed for non-contact detection of metallic objects. With a rated operating distance of 50 mm, this sensor integrates seamlessly into various automation applications.
Inductive proximity sensors are widely used in industrial automation for detecting the presence of metallic objects without direct contact. These sensors operate based on the principle of electromagnetic induction, where the sensor generates an oscillating electromagnetic field that interacts with metallic targets. When a metal object enters this field, it alters the oscillation frequency, triggering the sensor to provide an output signal.
Common applications of inductive sensors include assembly line equipment, packaging machines, and material handling systems. Their ability to function in harsh environments makes them suitable for use in manufacturing facilities, where dust, dirt, and moisture might otherwise impair the operation of other types of sensors. The flush installation feature of these sensors allows for easy integration into machinery, making them a versatile choice for a wide range of industrial applications.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 50 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 40.5 mm | |
| Reduction factor rAl | 0.38 | |
| Reduction factor rCu | 0.35 | |
| Reduction factor r304 | 0.83 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V DC | |
| Switching frequency | 0 … 1 Hz | |
| Hysteresis | typ. 3 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Tuning-out | greater or equal 50 ms | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 660 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PBT/metal | |
| Sensing face | PBT, active surface PTFE coated | |
| Degree of protection | IP68 | |
