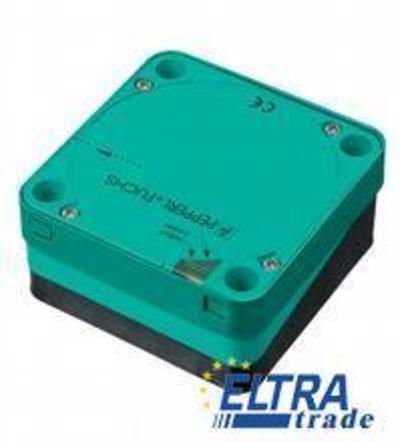

The inductive sensor is designed for non-contact detection of metallic objects, providing a reliable solution for various industrial applications. With a rated operating distance of 50 mm, this sensor offers precise sensing capabilities in demanding environments.
Inductive proximity sensors from Pepperl+Fuchs are essential components used in automation and control systems for detecting the presence of metallic objects without physical contact. These sensors operate on the principle of electromagnetic induction, where a changing electromagnetic field is generated, allowing the sensor to detect nearby metallic substances. The rectangular housing, made of durable PBT material, ensures robustness while facilitating easy integration into various setups.
Common applications for these sensors include monitoring and controlling machine parts, assembly lines, and automated material handling systems. Their flush installation capability allows for seamless integration into machinery, minimizing the risk of mechanical damage. With a DC voltage supply and a 4-wire output configuration, these sensors provide versatility and reliability in signaling and operational tasks across diverse industrial environments.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 50 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 40.5 mm | |
| Reduction factor rAl | 0.38 | |
| Reduction factor rCu | 0.35 | |
| Reduction factor r304 | 0.83 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V DC | |
| Switching frequency | 0 … 80 Hz | |
| Hysteresis | typ. 3 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 680 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
