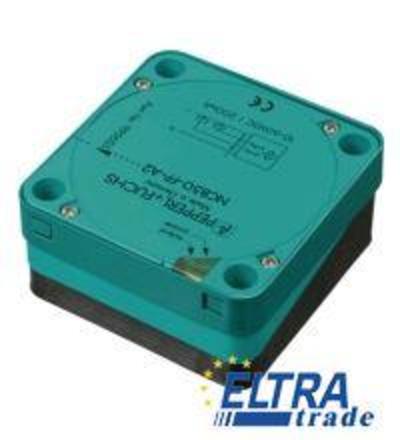

The inductive sensor is designed for non-contact detection of metallic objects, making it ideal for various automation applications. With a rated operating distance of 50 mm, this sensor offers reliable performance in industrial environments.
Pepperl+Fuchs inductive proximity sensors are essential components in automated systems, providing precise and reliable detection capabilities for metallic objects without physical contact. These sensors utilize electromagnetic fields to sense the presence of conductive materials, enabling efficient operation in diverse applications such as assembly lines, packaging machines, and conveyor systems.
Constructed with durable PBT housing, these sensors are engineered for flush installation, ensuring minimal interference in tight spaces. Their 3-wire output type and screw terminal connection facilitate straightforward integration into existing systems, while the DC voltage type allows for compatibility with a range of power supplies. The robust design and functionality of Pepperl+Fuchs inductive sensors make them a valuable asset in enhancing operational efficiency and safety in industrial settings.
| General specifications | ||
| Switching element function | PNP NO contact | |
| Rated operating distance | 50 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 40.5 mm | |
| Reduction factor rAl | 0.38 | |
| Reduction factor rCu | 0.35 | |
| Reduction factor r304 | 0.83 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V DC | |
| Switching frequency | 0 … 80 Hz | |
| Hysteresis | typ. 3 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 940 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
