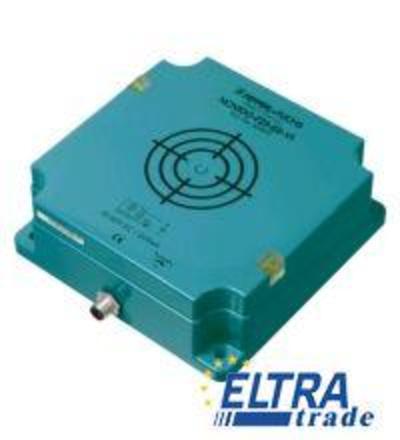

The inductive sensor is designed for non-flush mounting applications in industrial environments. It utilizes a rectangular housing made of durable ABS and aluminum, ensuring robust performance in various conditions.
Inductive proximity sensors are essential components in automation and control systems, providing reliable non-contact detection of metallic objects. These sensors operate on the principle of electromagnetic induction, generating an oscillating electromagnetic field that detects changes caused by the presence of metal within a specified sensing range.
Commonly used in manufacturing, packaging, and logistics, these sensors facilitate automation processes by detecting objects such as tools, components, and machinery parts. Their ability to operate without direct physical contact enhances durability and reduces wear over time, making them suitable for applications including positioning, counting, and safety monitoring.
Inductive sensors are available in various housing styles and sizes, with configurations adaptable to different installation requirements. Their robust design allows for use in harsh environments, making them a preferred choice for industries seeking reliability and efficiency in their automation solutions.
| 033499 art. NCN100-F23-E2-V1 | ||
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 100 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 81 mm | |
| Reduction factor rAl | 0.37 | |
| Reduction factor rCu | 0.35 | |
| Reduction factor r304 | 1 | |
| Reduction factor rBrass | 0.47 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 10 Hz | |
| Hysteresis | typ. 8 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 911 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | ABS (TSG), bottom Al | |
| Sensing face | ABS | |
| Degree of protection | IP67 | |
| General information | ||
| Note | The mounting conditions must be checked on a case-by-case basis depending on the application in question. | |
