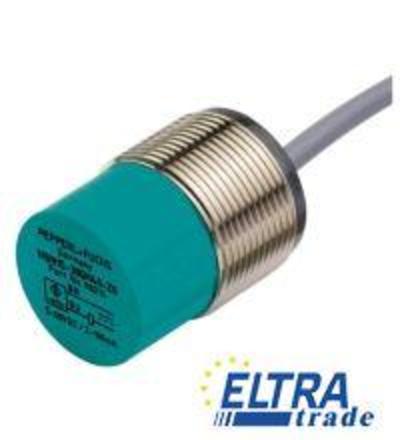

The inductive sensor series by Pepperl+Fuchs features cylindrical housing with a diameter of 30 mm, constructed from durable stainless steel 1.4305 (AISI 303). These sensors are designed for non-flush installation, offering a rated operating distance of 15 mm and a robust connection through a 2 m PVC cable.
Pepperl+Fuchs inductive proximity sensors are designed for non-contact detection of metallic objects in various industrial applications. With a cylindrical shape and a 30 mm housing diameter, these sensors provide reliable performance in environments where traditional mechanical switches may fail. The stainless steel construction ensures durability and resistance to environmental factors, making them suitable for use in harsh conditions.
Common applications for these sensors include automation systems, conveyor technology, and material handling processes. Their 15 mm rated operating distance allows for precise detection, contributing to improved efficiency and safety in operational workflows. Additionally, the 2-wire output type simplifies installation and integration into existing systems, while the ATEX certification highlights their suitability for use in potentially explosive atmospheres.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 15 mm | |
| Installation | non-flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.35 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Nominal voltage | 8 V DC | |
| Switching frequency | 0 … 150 Hz | |
| Hysteresis | 5 … 15 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | yes | |
| Current consumption | ||
| Measuring plate not detected | min. 2.2 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Switching state indicator | all direction LED, yellow | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic compatibility | NE 21:2007 | |
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Storage temperature | -40 … 100 °C (-40 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.75 mm2 | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 3G- 1D- 3D | |
