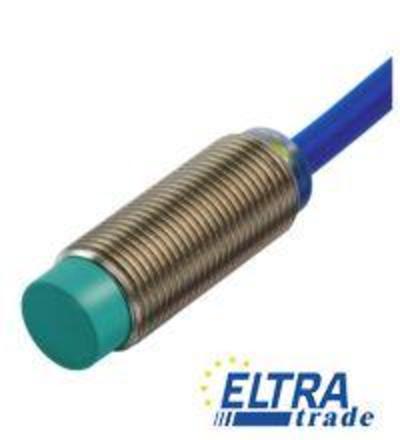

The inductive sensor is a cylindrical type sensor designed for non-flush installation in various industrial applications. With a housing diameter of 12 mm and made of stainless steel 1.4305 / AISI 303, it ensures durability and resistance to harsh environments.
Inductive proximity sensors are widely used in automation and industrial applications for non-contact detection of metallic objects. They operate on the principle of electromagnetic induction, allowing them to detect the presence of metal without any physical contact. This makes them ideal for applications where wear and tear from contact-based sensors would be detrimental.
These sensors are particularly suited for environments that require durability and reliability, as they are constructed from robust materials such as stainless steel. Common applications include position sensing, object counting, and speed detection in manufacturing processes, packaging, and assembly lines. The sensors are typically connected via a two-wire system and are available with varying operating distances to meet specific application needs.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 4 mm | |
| Installation | non-flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 3.24 mm | |
| Reduction factor rAl | 0.37 | |
| Reduction factor rCu | 0.36 | |
| Reduction factor r304 | 0.74 | |
| Nominal ratings | ||
| Nominal voltage | 8 V | |
| Switching frequency | 0 … 800 Hz | |
| Hysteresis | 1 … 10 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | yes | |
| Current consumption | ||
| Measuring plate not detected | min. 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Switching state indicator | all direction LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 2520 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 �C (-13 … 212 �F) | |
| Storage temperature | -40 … 100 �C (-40 … 212 �F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 10 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 3G- 1D- 3D | |
