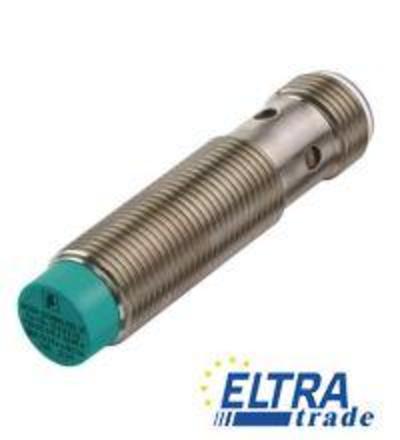

The inductive sensor is a cylindrical type sensor with a housing diameter of 12 mm, designed for non-flush installation. It features a robust stainless steel construction and operates with a rated distance of 4 mm.
Inductive proximity sensors are essential components in automation and control systems, widely used for detecting metallic objects without physical contact. This sensor type employs electromagnetic fields to sense the presence of metallic objects, allowing for reliable operation in various industrial environments.
These sensors are particularly suited for applications in assembly lines, packaging machines, and other automated processes where precise object detection is critical. Their robust stainless steel housing offers durability and resistance to harsh conditions, making them ideal for use in factories and plants.
- Operating voltage: DC
- Output type: 2-wire
- Connection type: Connector M12 x 1, 4-pin
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 4 mm | |
| Installation | non-flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 3.24 mm | |
| Reduction factor rAl | 0.37 | |
| Reduction factor rCu | 0.36 | |
| Reduction factor r304 | 0.74 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Switching frequency | 0 … 800 Hz | |
| Hysteresis | 1 … 10 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | yes | |
| Current consumption | ||
| Measuring plate not detected | min. 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 2520 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic compatibility | NE 21:2007 | |
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Storage temperature | -40 … 100 °C (-40 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 1D | |
